Abstract
As web applications grow in complexity, performance and user experience become paramount. Directly manipulating the DOM can be slow and inefficient, especially during state changes that require complete re-renders. React addresses this challenge through an ingenious approach - the virtual DOM. This blog will explain how React uses a virtual DOM to update the real DOM[2] efficiently.
Introduction
The Real DOM[2] Challenge
The real DOM[2] refers to the DOM tree browsers parse and render. Traditionally, whenever the state of an app changes, the entire DOM must be re-rendered. This involves:
Traversing the whole DOM tree on every update
Calling DOM mutation methods like insertNode(), removeChild(), etc.
Triggering browser reflow/repaint calculations on the updated tree
For large, complex UIs, fully re-rendering[12] the DOM on every change can significantly impact performance. The more DOM nodes involved, the slower this process becomes.
Discussion
Introducing the Virtual DOM[1]
React takes a different approach - it introduces a lightweight "virtual" DOM. This virtual DOM[1] is essentially a JavaScript representation of the real DOM[2]. It acts as an intermediary, allowing React to efficiently manage state changes.
When state[8] updates occur in a React component[7], React first:
Uses the component's[7] render() method to build a new virtual DOM[1] tree
Compares this new tree with the previous render
Calculates the minimum number of updates needed to synchronize the real DOM[2]
Applies the necessary DOM changes directly through a patching[5] process

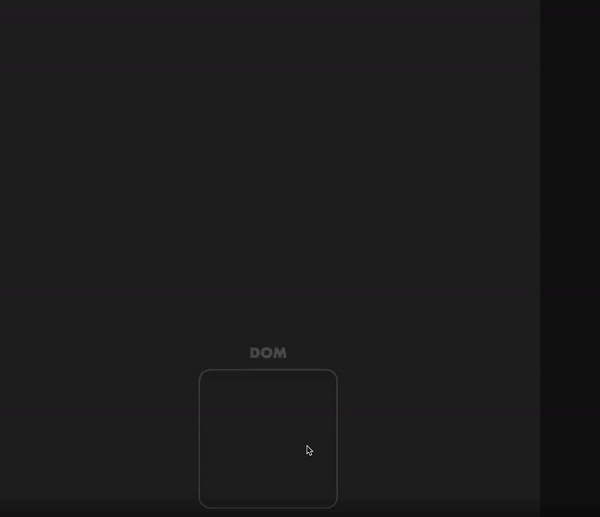

animation credit — vattsal Bhatt
This optimization strategy is known as "reconciliation."[3] By targeting specific nodes rather than rerendering everything, React minimizes the overall work required.
The Benefits of Virtual DOM[1] Diffing[4]
Several key advantages arise from React's virtual DOM[1] approach:
Performance - Diffing[4] algorithms allow React to precisely determine DOM mutations needed rather than full re-renders. Single batched updates[13] also improve perceived speeds.
Lightweight Rendering[11] - Since the virtual DOM[1] is just JavaScript, rendering[11] is fast. This lightweight representation can then be efficiently mapped to the heavier real DOM[2].
Declarative Programming[6] - Components[7] declaratively describe their UI rather than directly manipulating DOM. This abstraction improves flexibility and testability.
Reusability - Virtual DOM[1] handling is isolated within React, freeing components[7] to focus solely on presentation logic.
Cross-Platform Consistency - React's declarative model guarantees a consistent DOM across browsers through its reconciliation[3] process.
Issues Bypassing Virtual DOM[1]
While directly interacting with the real DOM[2] may seem more direct, it can cause issues like:
Full re-renders on unrelated updates due to lack of diffing[4]
Inability to optimize component[7] re-renders individually
Loss of React's fine-grained control over the DOM update process
Testing headaches outside normal component[7] lifecycles[9]
Conclusion
React's virtual DOM[1] is optimized for robust performance through its declarative update model and diff reconciliation[3] approach. It efficiently minimizes real DOM[2] work, improving application responsiveness.
Keywords
Virtual DOM: A JavaScript representation of the real DOM tree that is used by React to efficiently manage updates.
Real DOM: The actual DOM tree that is parsed and rendered by browsers.
Reconciliation: The process by which React synchronizes the virtual DOM with the real DOM by applying the minimum necessary updates.
Diffing
: The algorithm React uses to compare the previous and current virtual DOM representations to determine what changes are needed.
Patching: Applying the specific DOM updates identified by the diffing[4] process directly to the real DOM tree.
Declarative Programming: Describing what a component should render rather than how to specifically update the DOM.
Component: Reusable UI building blocks that describe their render output without worrying about updates.
State: Dynamic values that influence a component's rendered output.
Lifecycle Methods: Special methods that allow components to run code in response to state changes and component mounting/unmounting.
Props: Values passed to a component to customize its look and behavior without altering its implementation.
Rendering: The process of outputting the virtual DOM representation and synchronizing it with actual DOM elements displayed in the browser.
Re-rendering: When changes to state or props require a component to rebuild its render output and synchronize it with the real DOM again.
Batched Updates: Updating the real DOM efficiently by minimizing the number of actual DOM manipulation calls needed.
References
React documentation - Refs and the DOM: Official React documentation on working with the DOM and using refs: https://reactjs.org/docs/refs-and-the-dom.html
React'sVirtual DOM: React's reconciliation algorithm and virtual DOM explanation: https://reactjs.org/docs/reconciliation.html
React's Component-Based Architecture: React's approach to building user interfaces with a component-based architecture: https://reactjs.org/docs/components-and-props.html
React Philosophy - Learn Once, Write Anywhere: React's philosophy of focusing on a single way of building UI components and managing state: https://reactjs.org/docs/thinking-in-react.html
React's Synthetic Event System: React's synthetic event system and its advantages over directly manipulating the DOM: https://reactjs.org/docs/events.html
React's setState: Using the setState method for managing component state and triggering updates: https://reactjs.org/docs/react-component.html#setstate
React's Lifecycle Methods: Overview of React's lifecycle methods and their usage for managing component updates: https://reactjs.org/docs/react-component.html#the-component-lifecycle
